Fire service trailers – for the State Fire Service and Voluntary Fire Service
Fire service trailers for emergency services
Fire service trailers for emergency services
Fire service trailers are a practical addition to the equipment of the State Fire Service and Volunteer Fire Brigades. They enable the safe and organised transport of hoses, motorised pumps, generators, rescue equipment, lighting, tools and other equipment used during fire-fighting operations and in the aftermath of natural disasters.
A properly designed fire service trailer allows additional equipment to be transported without taking up space in the fire engine. The equipment can be arranged in such a way that firefighters have quick access to it upon arrival at the scene.
Fire service trailers tailored to the needs of the State Fire Service and the Voluntary Fire Service
Each unit uses different equipment and operates under different conditions. Therefore, fire service trailers can be designed to take into account the type of equipment being transported, its weight, dimensions and intended use.
A fire service trailer can be constructed, amongst other options, as a closed container-style body or a tarpaulin-covered trailer. Depending on its intended use, it is possible to fit shelves, racking, brackets, transport fastenings, side doors, a tailgate, electrical wiring, and internal and external lighting.
The enclosed design helps to protect the equipment being transported from rain, snow, dust and dirt, whilst appropriately selected securing measures minimise the risk of the equipment shifting whilst the vehicle is in motion.

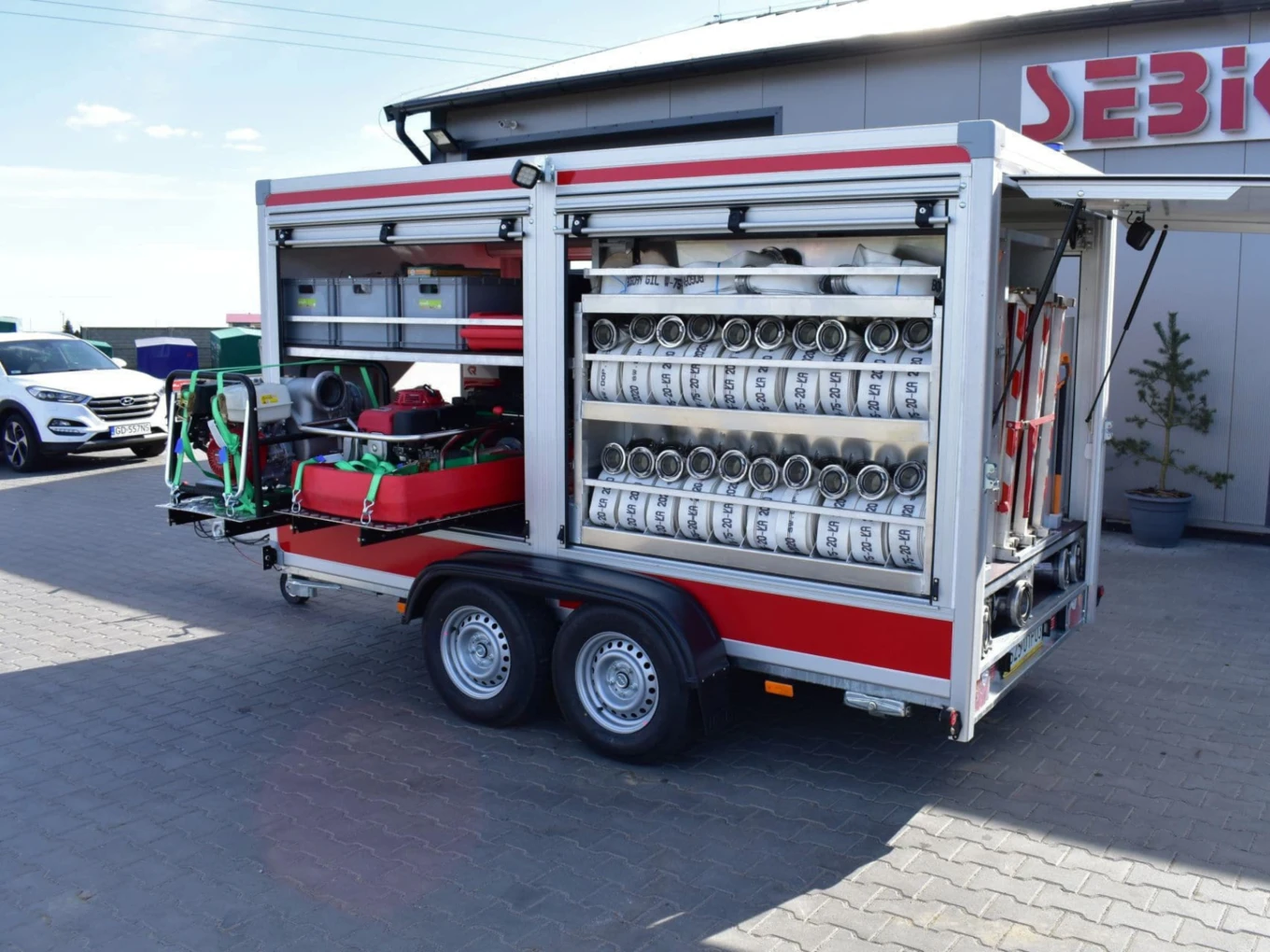

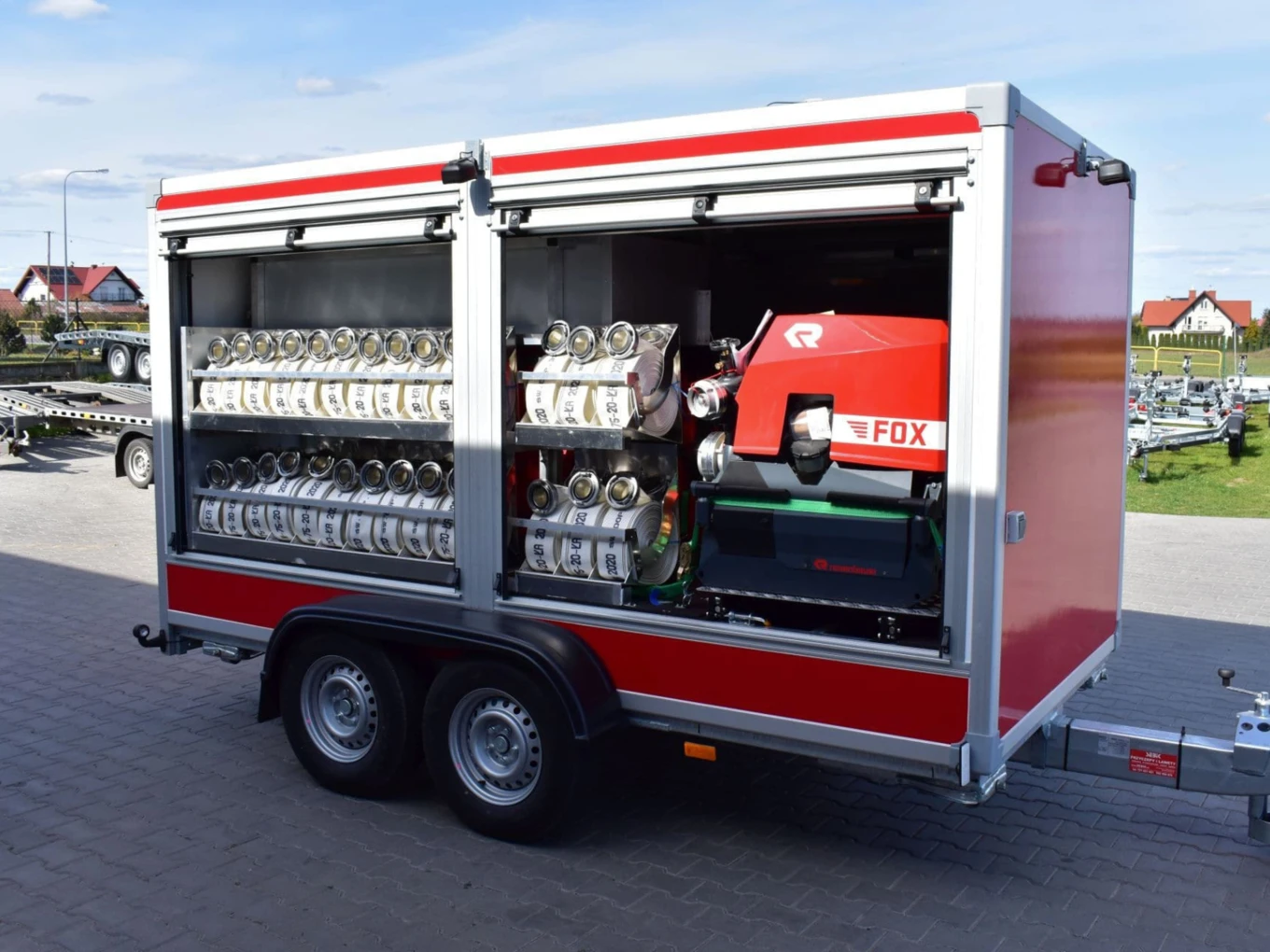

Hose trailer for transporting fire hoses
The hose trailer is designed to transport a large number of fire hoses used during fire-fighting operations, flood relief efforts and for supplying water over long distances. The appropriate layout of the compartments and holders facilitates the organisation of the equipment, its deployment and subsequent preparation for reuse.
The hose trailer can be adapted to the number, diameter and length of the hoses being transported. The design can also incorporate space for water fittings, manifolds, nozzles, couplings and other components required during rescue and fire-fighting operations.
Fire service trailer for transporting specialist equipment
Trailers for the State Fire Service (PSP) and Voluntary Fire Service (OSP) can be used not only to transport hoses, but also as mobile technical support units. Depending on the configuration, the trailer can be used to transport:
motorised pumps and slurry pumps,
generators,
flood-control equipment,
-
tents and logistical equipment,
-
technical rescue equipment,
-
operational lighting,
-
tools and protective equipment.
A well-designed fire service trailer helps to keep equipment organised and reduces the time needed to prepare it for use.
Our projects
All fire service trailers can be built on the basis of a container or a tarpaulin-covered goods trailer. The first option ensures 100% waterproofing, dustproofing and resistance to temperature fluctuations, which is very important when transporting expensive equipment inside the trailer. The second solution – the tarpaulin-covered trailer – is a cheaper and more versatile option. Such a trailer can be used for various purposes, and its fittings can be adapted to the current needs of a particular unit. We can fit every trailer with an internal frame tailored to the equipment being transported.

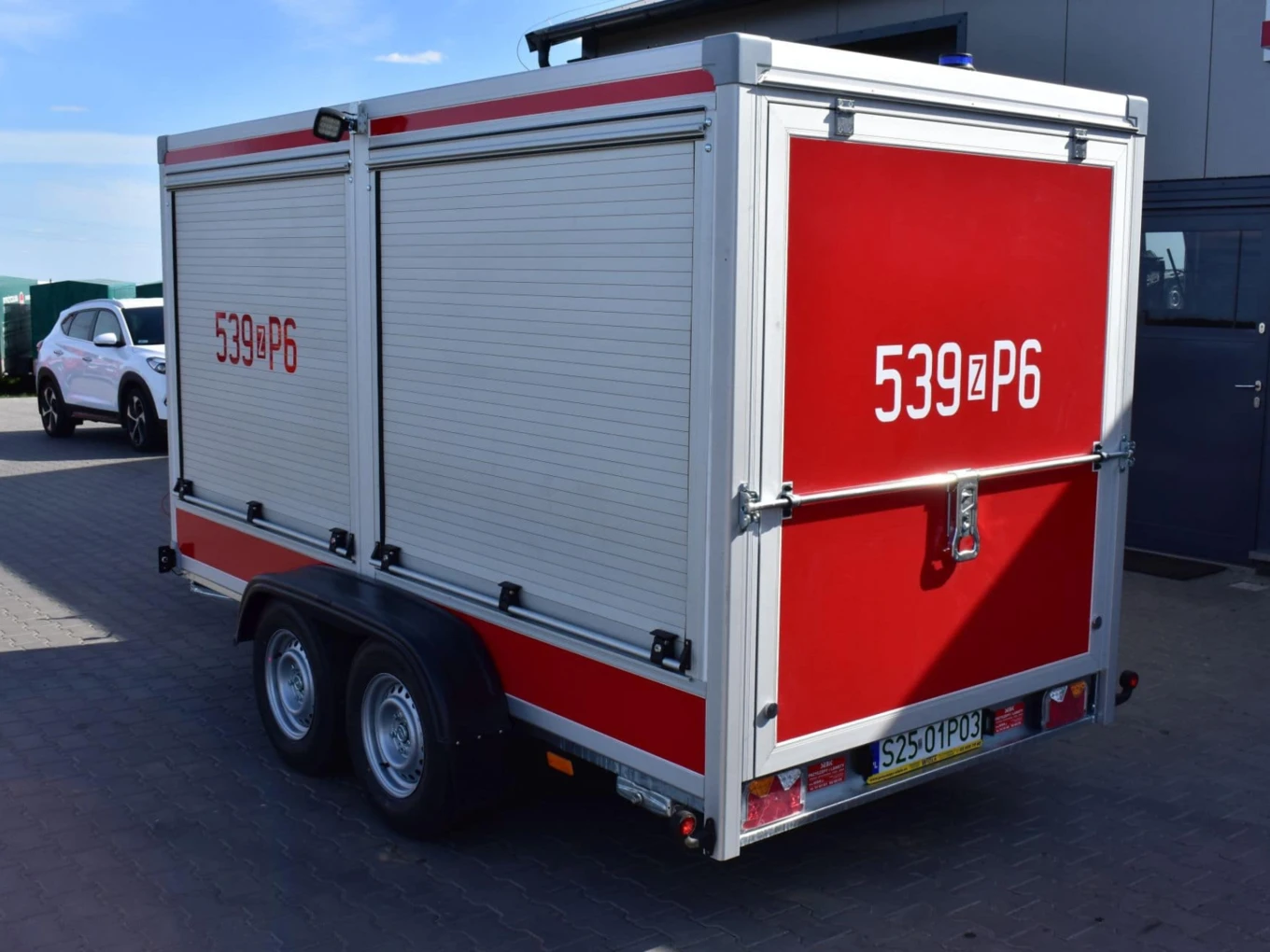

Dobrzany Volunteer Fire Brigade
Internal dimensions: 3500 x 1800 x 1750 mm
Maximum authorised mass: 2700 kg
The trailer is fitted with:
- A chassis made of reinforced S355MC steel, welded and hot-dip galvanised.
- An AL-KO running gear, including two braked axles, each with a capacity of 1,350 kg
- An AL-KO drawbar with a coupling height adjustable from 35 to 110 cm
- Ball hitch for coupling to delivery vans
- DIN 40 eye hitch for coupling to lorries.
- Electrical installation with a 12/24V voltage converter
- All lights are LED
- Container body constructed from anodised aluminium profiles
- Walls made from sandwich panels: polyester-glass laminate + XPS foam
- Red wall cladding + unit numbers
- Aluminium dust-proof and waterproof shutters, lockable
- Rear tailgate that opens upwards, assisted by gas struts
- Pull-out, ball-bearing-mounted shelves with a load capacity of up to 250 kg (for foam generators and pumps)
- Compartments for suction hoses
- Double floor with a partition, made from 15 mm thick waterproof plywood
- Warning lights – blue in the corners
- 12V work lights on all walls

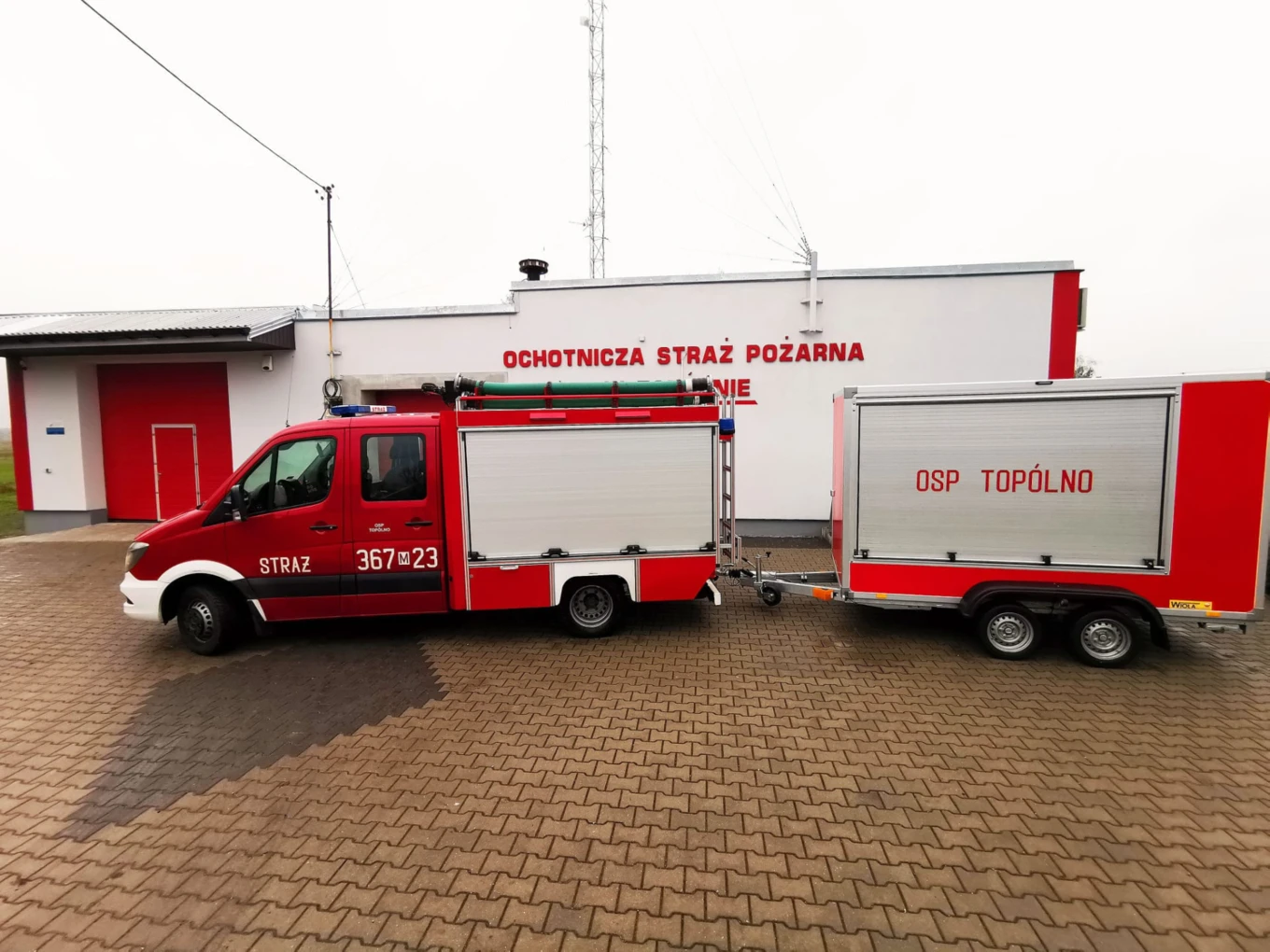

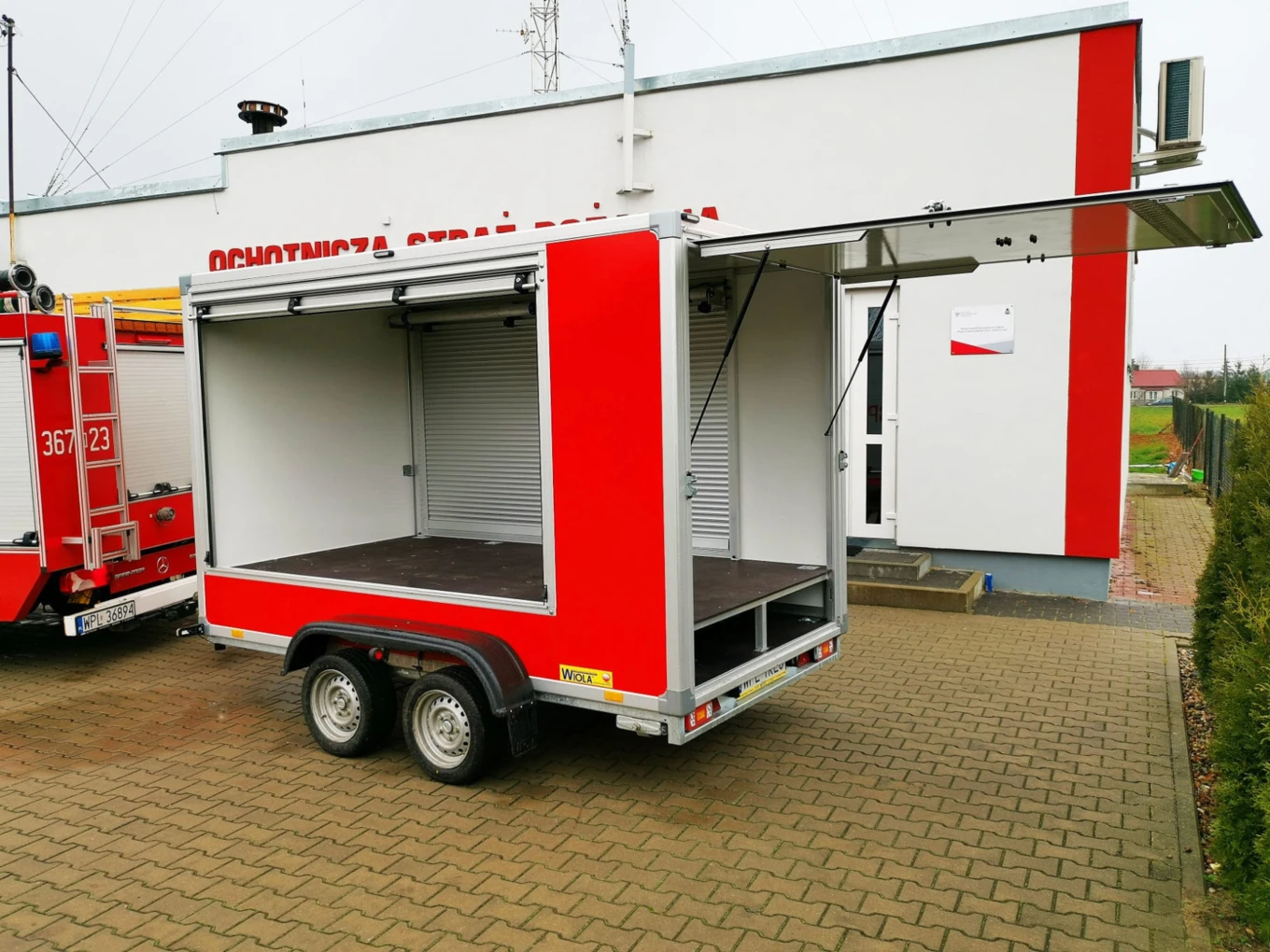

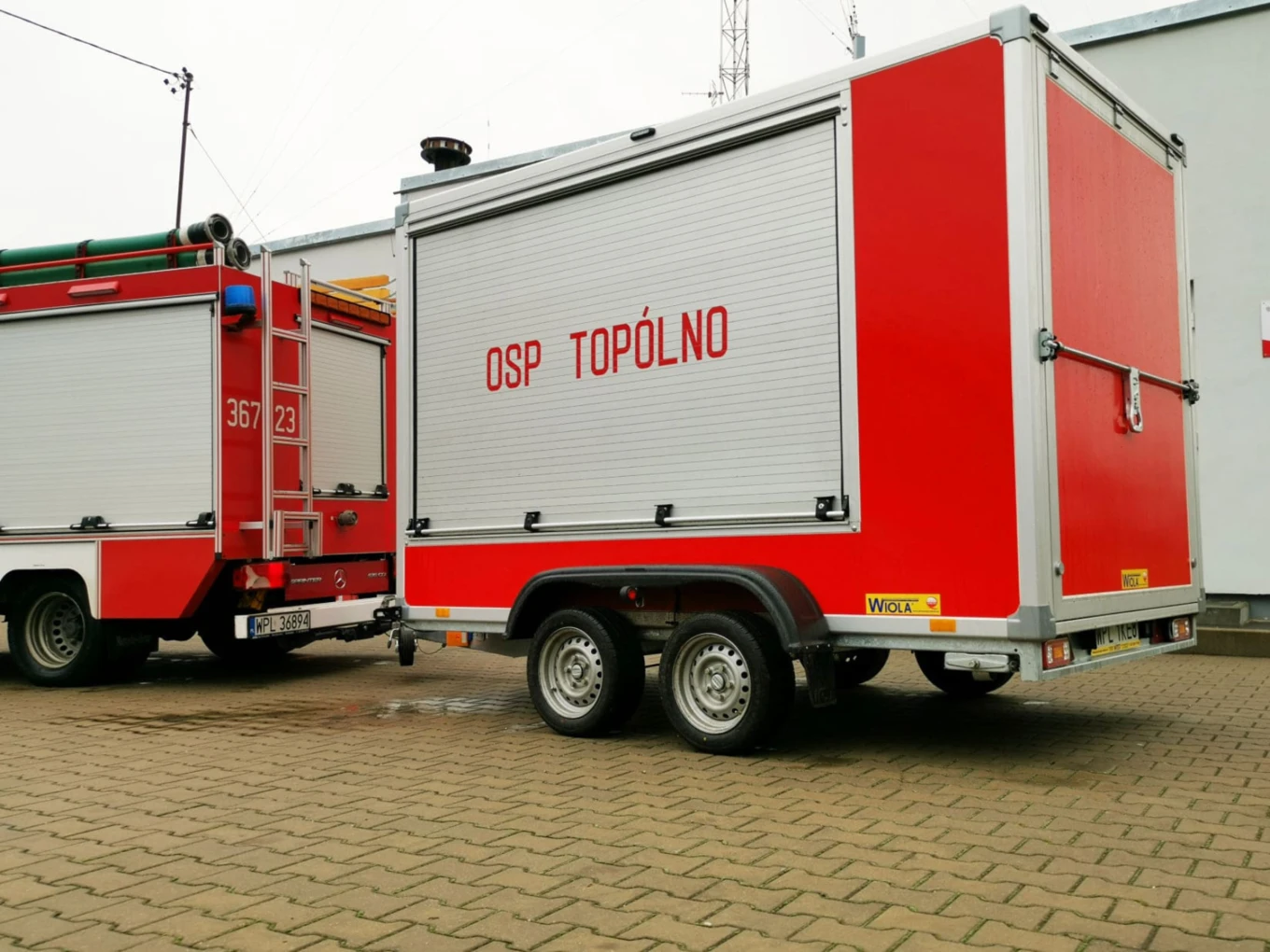

Topólno Volunteer Fire Brigade
Internal dimensions: 3,500 x 1,700 x 1,750 mm
Maximum authorised mass: 2,700 kg
The trailer is fitted with:
- A chassis made from reinforced S355MC steel, welded and hot-dip galvanised.
- An AL-KO running gear, including two braked axles, each rated at 1350 kg
- Fixed drawbar, bolted to the frame
- 12V electrical system
- The container’s structure is made from anodised aluminium profiles
- Walls made from sandwich panels: polyester-glass laminate + XPS foam
- Red wall cladding + unit numbers
- Aluminium dust-proof, waterproof shutters, lockable
- Rear flap opens upwards, assisted by gas struts
- A raised floor with a partition, made from 15 mm thick waterproof plywood
- Warning lights – blue in the corners
- Trapezoidal supports at the rear
- 12V work lights on all sides

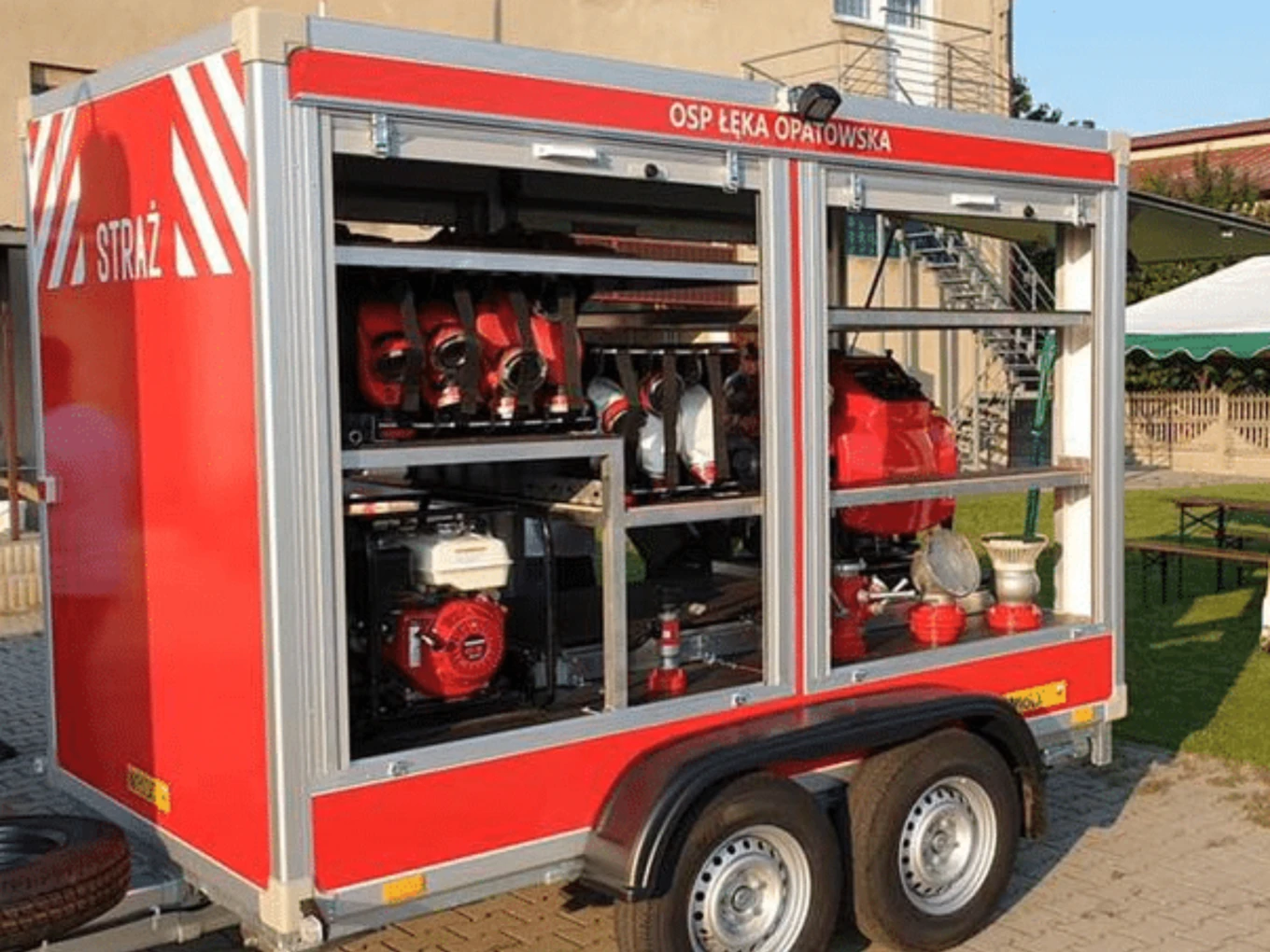

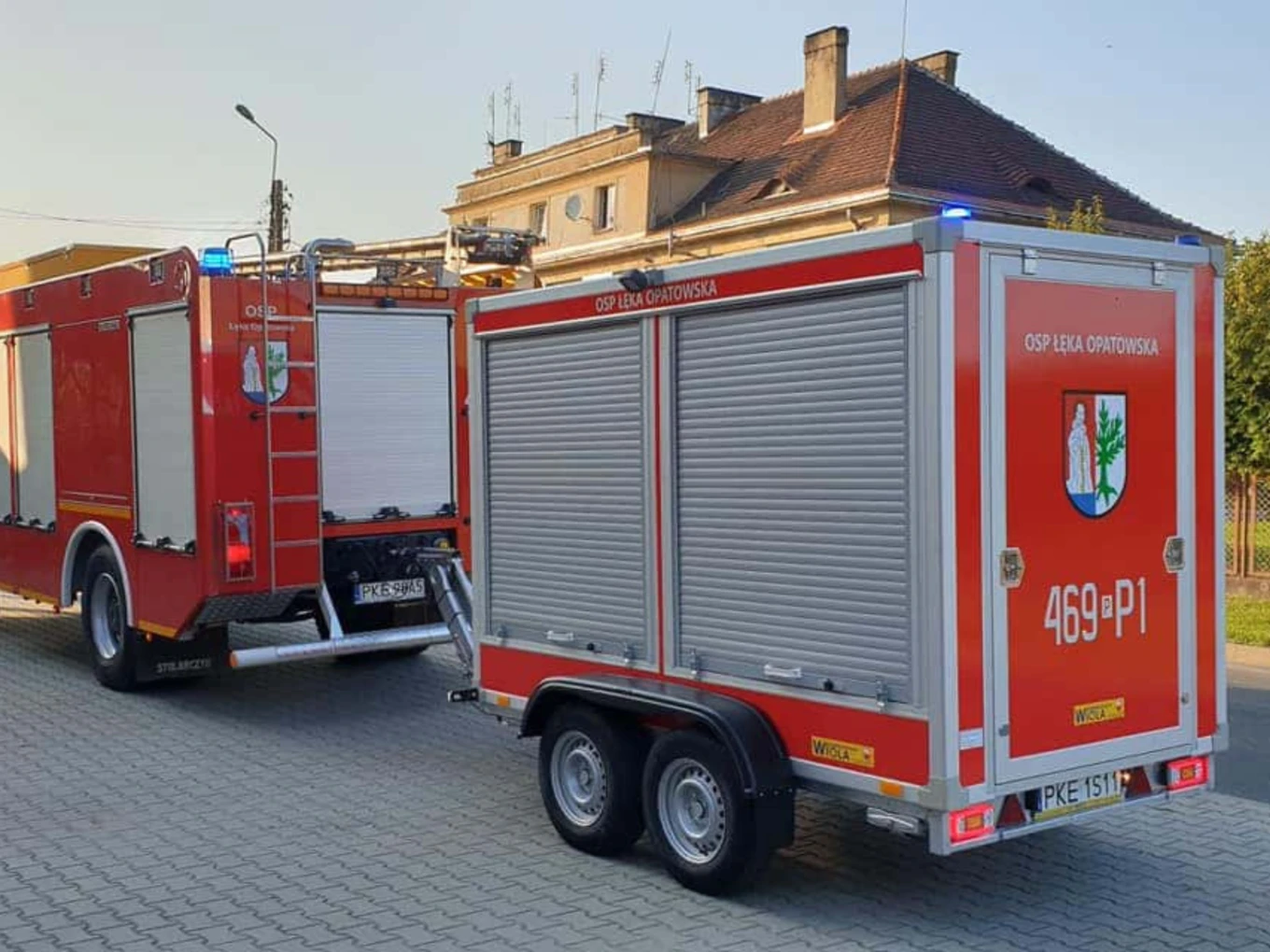

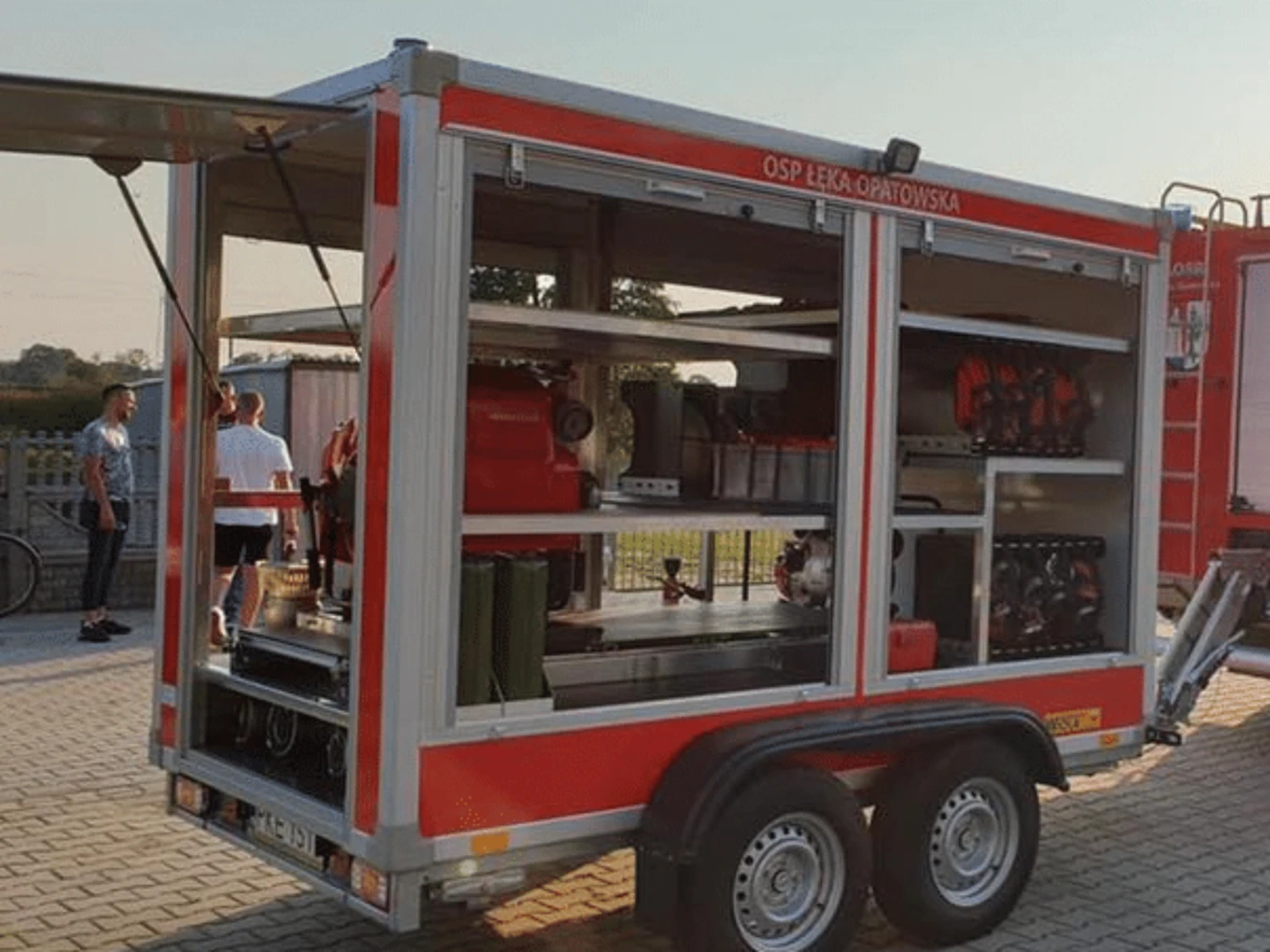

Łęka Opatowska Volunteer Fire Brigade
Internal dimensions: 2760 x 1700 x 1850 mm
Maximum authorised mass: 2700 kg
The trailer is fitted with:
- A chassis made of reinforced S355MC steel, welded and hot-dip galvanised
- AL-KO running gear, including two braked axles, each rated at 1350 kg
- Height-adjustable drawbar with AL-KO coupling – ball hitch + DIN 40 eye hitch
- 12/24V electrical system
- The container’s structure is made from anodised aluminium profiles
- Walls made of sandwich panels: polyester-glass laminate + XPS foam
- Red wall cladding + unit numbers
- Aluminium dust-proof and waterproof shutters, lockable
- Rear flap opening upwards, assisted by gas struts
- Double floor with a partition, made from 15 mm thick waterproof plywood
- Aluminium internal frame for rescue equipment
- Warning lights – blue in the corners
- Trapezoidal supports at the rear
- 12/24V work lights on all walls
Bespoke fire service trailers
WIOLA offers the option of designing a fire service trailer tailored to the individual needs of your unit. The design can take into account the required dimensions, maximum permissible mass, type of bodywork, door layout, equipment configuration and additional features to facilitate the trailer’s operation.
Please contact us and let us know what equipment the trailer is intended to carry. We will help you select the appropriate design and develop a solution tailored to the needs of your professional or voluntary fire service.
